產品特性
產品特性
醫療和I.T.E.安全認證
2 MOPP 隔離保護
漏電流 ≤ 100μA
DOE 六級能效
待機功耗≤0.15W
12V至52V輸出, 最高90W
工作海撥高度5000米
電氣規格
輸入電壓:90~264VAC
輸入電流:1.5A at 90vac
環境參數
工作溫度: 0~40℃
儲存溫度: -20~80℃
工作濕度:10~90%
儲存濕度:5~90%
安規認證
安全機構/標志 醫療 通信
CB IEC60601-1 IEC60950-1 IEC62368-1
UL ANSI/AAMI ES60601-1 UL62368-1 UL62368-1
CAN/CSA C22.2 NO.60601-1
TUV Rheinland/Mark EN60601-1 -
TUV Rheinland/GS - EN62368-1
CE - EN62368
CCC - GB4943.1
FCC - FCC PART 15
PSE - J60950
產品尺寸
150.5(長)*71(寬)*28(高)mm
應用場所

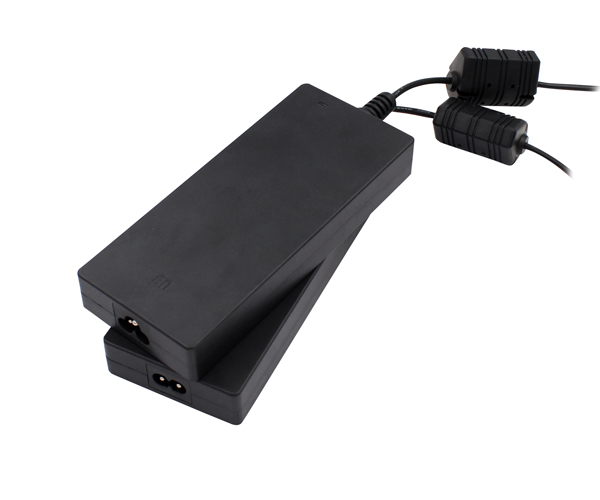

適用于醫療、信息通訊設備類電源適配器
輸出數據
型號 | 電壓 | 電流 | 額定功率 | 紋波 | 電壓公差 | 線性與負數調整率 | 平均效率 | 啟動延遲時間 |
12.0 | 0.01-7.00 | 84.00W | 150 | ±5% | 88.60% | ≤3s | ||
12.1-15.0 | 0.01-5.67 | 85.05W | 180 | ±5% | 88.60% | ≤3s | ||
15.1-17.0 | 0.01-5.00 | 85.00W | 200 | ±5% | 88.60% | ≤3s | ||
17.1-19.0 | 0.01-4.76 | 90.44W | 200 | ±5% | 88.60% | ≤3s | ||
19.1-22.0 | 0.01-4.10 | 90.20W | 200 | ±5% | 88.60% | ≤3s | ||
22.1-24.0 | 0.01-3.75 | 90.00W | 200 | ±5% | 線性調整率: ±1% | 88.60% | ≤3s | |
UES90-XXXYYYSPAZ | 24.1-26.0 | 0.01-3.34 | 90.09W | 200 | ±5% | 負載調整率: ±5% | 88.60% | ≤3s |
| UES90-XXXYYYSPA -OP | 26.1-30.0 | 0.01-3.00 | 90.00W | 200 | ±5% | 88.60% | ≤3s | |
30.1-33.0 | 0.01-2.73 | 90.09W | 200 | ±5% | 88.60% | ≤3s | ||
33.1-36.0 | 0.01-2.50 | 90.00W | 200 | ±5% | 88.60% | ≤3s | ||
36.1-39.0 | 0.01-2.31 | 90.90W | 200 | ±5% | 88.60% | ≤3s | ||
39.1-43.0 | 0.01-2.10 | 90.30W | 240 | ±5% | 88.60% | ≤3s | ||
43.1-46.0 | 0.01-1.96 | 90.16W | 360 | ±5% | 88.60% | ≤3s | ||
46.1-48.0 | 0.01-1.88 | 90.24W | 480 | ±5% | 88.60% | ≤3s | ||
48.1-52.0 | 0.01-1.73 | 89.63W | 560 | ±5% | 88.60% | ≤3s |
